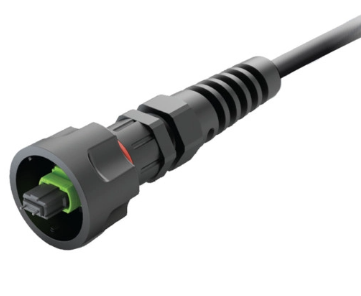

OptoSpan’s IP68-Series armored, and non-armored outdoor weatherproof fiber optic cables are designed to deliver robust network connections even in the harshest environments. These cables are revolutionizing outdoor installations with their unique lockable bayonet MPO and LC connector design that provides IP68 rated Water immersion and dust protection. This innovative design eliminates accidental disconnects, provides tamperproof protection, enables quick installation of outdoor antennas and other critical equipment, and does not require any special tools, thereby providing network engineers with a robust and resilient solution for harsh outdoor environments.
OptoSpan IP68-Series outdoor fiber optic cables are available with OptoSpan’s locking bayonet connectors for industrial and Fiber to the Antenna (FTTA) applications as well as with standard MPO, MTP, LC, SC, ST and FC connectors for inter/intra building applications.
This IP68-rated harsh environment cable is based on OptoSpan’s SteelFlex Armored design, has a robust OptoLock mechanism for outdoor use with or without conduit, and is rodent-proof.
This incredibly durable waterproof cable has two additional steel wires for the tensile strength necessary for extended lengths of outdoor use, in addition to IP68 and UV ratings.
This waterproof cable, based on OptoSpan’s SteelPatch Armored design with IP68 and UV ratings is flexible, and lightweight.
This IP68 rated waterproof cable for outdoor use is made of Thermoplastic Polyurethane (TPU) for high tear strength, chemical & oil resistance, and superior abrasion resistance.
| SteelFlex-IP68 | SteelFlex-IP68 SteelMax-IP68 | SteelPatch-IP68 | TPU-IP68 | |
|---|---|---|---|---|
| Cable Mechanism | OptoLock Mechanism (Steel) | Fiber Within Steel Jacket + Dual Strength Wires | Fiber Within Steel Jacket | Abrasion Resistant Non-metallic TPU Jacket |
| Recommended Use | Intra-building – Military Grade, Rodent Proof | Suitable for Inter-building distances over 100m and use with or without conduit | Intra-building distances under 100m requiring flexibility | Non-metallic Outdoor |
| IP Ratings | Outdoor IP68 Rating – 100% waterproof | Outdoor IP68 Rating – 100% waterproof | Outdoor IP68 Rating – 100% waterproof | Outdoor IP68 Rating – 100% waterproof |
| Stress Relief Glands |
|
|
|
|
| Connector Options |
|
|
|
|
| SteelFlex-IP68 | SteelMax-IP68 | SteelPatch-IP68 | TPU-IP68 | |
|---|---|---|---|---|
| Water & Dust Protection | IP68 waterproof (w/ Bayonet) | IP68 waterproof (w/ Bayonet) | IP68 waterproof (w/ Bayonet) | IP68 waterproof (w/ Bayonet) |
| Ruggedness | Highest | Very High | High | Medium |
| Pulling Strength | High | Highest | Very High | Medium |
| Lateral Pressure Resistance | Highest | Very High | High | Medium |
| UV Rated (Direct Sunlight) | No | Yes | Yes | Yes |
| Rodent Protection | Rodent-Proof | Rodent-Resistant | Rodent-Resistant | Low |
| SteelFlex-IP68 | SteelMax-IP68 | SteelPatch-IP68 | TPU-IP68 | |
|---|---|---|---|---|
| Outer Diameter | 4.8mm | 8mm | 7mm | 5.5mm |
| Fiber Count | 2-24 | 2-48 | 2-48 | 2-144 |
| Fiber Type | OS2 (Single mode), OM4 (Multimode) | OM4 (Multimode) OS2 (Single mode), OM4 (Multimode) | OM4 (Multimode) OS2 (Single mode), OM4 (Multimode) | OM4 (Multimode) OS2 (Single mode), OM4 (Multimode) |
| Jacket Material | Low Smoke Zero Halogen (LSZH) | Polyethylene (PE) | (Polyvinyl Chloride) PVC | Thermoplastic Polyurethane (TPU) |
| Operating Temperature | -40°C~+85°C | 40°C~+70°C | -40°C~+70°C | -40°C~+80°C |
| Min. Bending Radius (mm) | 40mm | 160mm | 140mm | 100mm |
| Crush Resistance (N/100) | 5000 | 3000 | 2200 | 1000 |
| Mating Durability (IP68 Connector) | 500 | 500 | 500 | 500 |
| Environment | Indoor / Outdoor | Outdoor | Indoor / Outdoor | Outdoor |
