MPO-MPO TRUNK CONFIGURATIONS:

How to choose the right MPO fiber cable for your application?
Choosing the correct cable depends on many key factors – such as type of network optics, fiber count, cable polarity, type of MPO connectors, and fiber media type (single-mode or multimode). If you’re not sure, or if you need help, please call us!

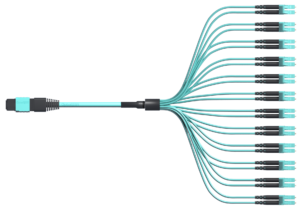

MPO Cable Application Configurations

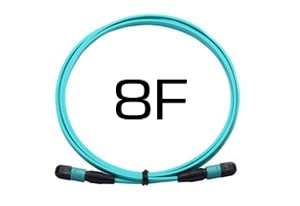

• 8-Fiber MPO Patch Cords are generally used to connect QSFP+ transceivers, requiring 4 send and 4 receive lanes.
• 12-Fiber MPO Patch Cords are generally used for trunk and backbone applications.

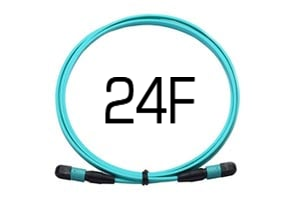

• 24-Fiber MPO Patch Cords are generally used for high-density trunk and 100G applications.
• 48-144 Fiber MPO Patch Cords are available for high-density backbone applications.

MPO Polarity:
To ensure that data is transmitted correctly across fiber links, the transmit signal (Tx) at one end of the cable must match the equivalent receiver (Rx) at the other end. MPO polarity scheme’s objective is to assure this continuous connection, which gets slightly more complicated when dealing with multi-fiber components. Industry standards call for three different MPO polarity methods: Method A, Method B, and Method C.

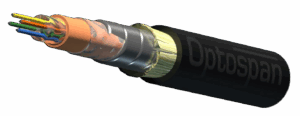

FiberShield:
FiberShield MPO cables from OptoSpan are five times stronger than standard fiber cables!
8-, 12-, and 24-fiber standard MPO-MPO patch cables feature exclusive 5x stronger FiberShield technology, with 3x more PVC and DuPont Kevlar than that of MPO optical cables offered by competitors. These MPO patch cables are 4.5mm or 3.0mm thick, protecting them against accidental damage which is normally associated with installations.
